ATEX Street Light 50W suitable for zone 1, 21 and 2, 22

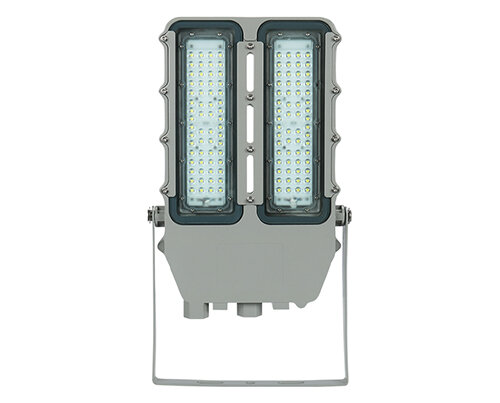

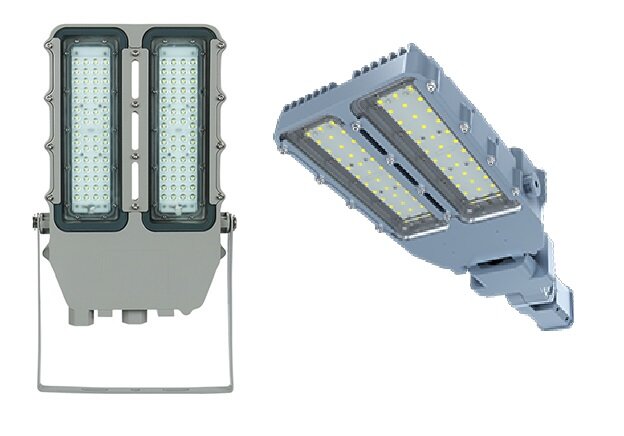

The STA2 ATEX certified street light fixture is specifically designed for application in hazardous areas where maximum safety and reliable lighting are essential. This explosion-proof light pole luminaire is certified to ATEX and IECEx standards and suitable for application in Zone 1, 21 and Zone 2, 22. Typical application areas of this ATEX lamppost fixture include Wastewater treatment plants, gas stations, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels and mines.ATEX Standard (Zone 1):
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T95°C...T125°C Db IP66
ATEX Standard (Zone 2&21&22):
II 3G Ex ec mb llC T6...T4 Gc
II 2D Ex tb lllC T80°C...T100°C Db
IECEx Standard (Zone 1):
Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T95°C...T125°C Db IP66
IECEx Standard (Zone 2&21&22):
Ex ec mb llC T6...T4 Gc
Ex tb lllC T80°C...T100°C Db
Easy Installation:

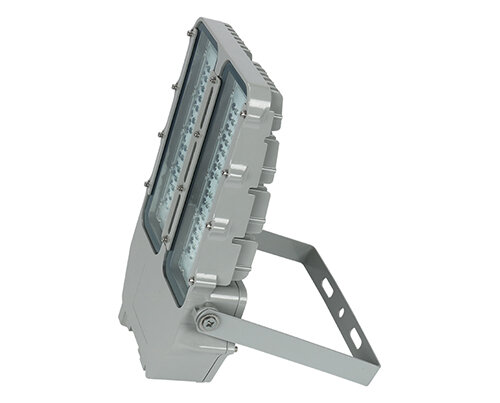

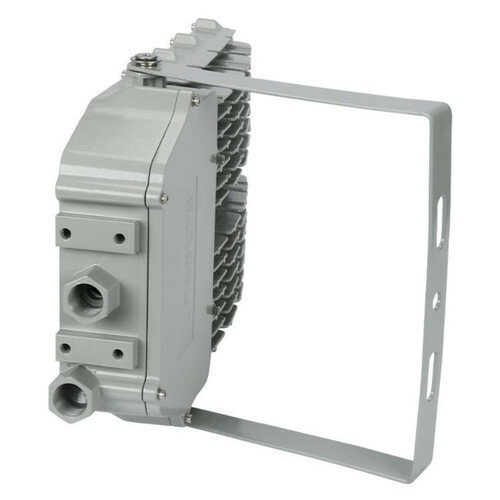

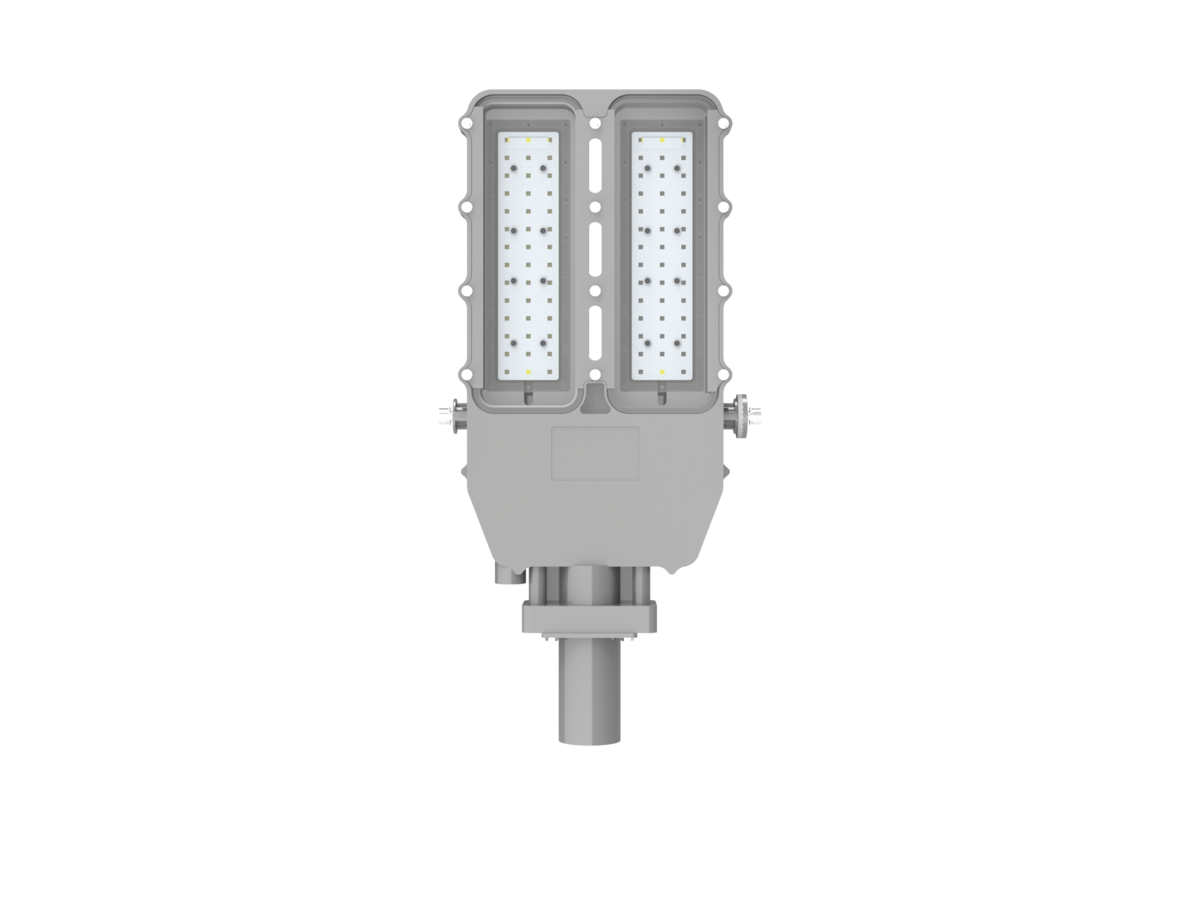

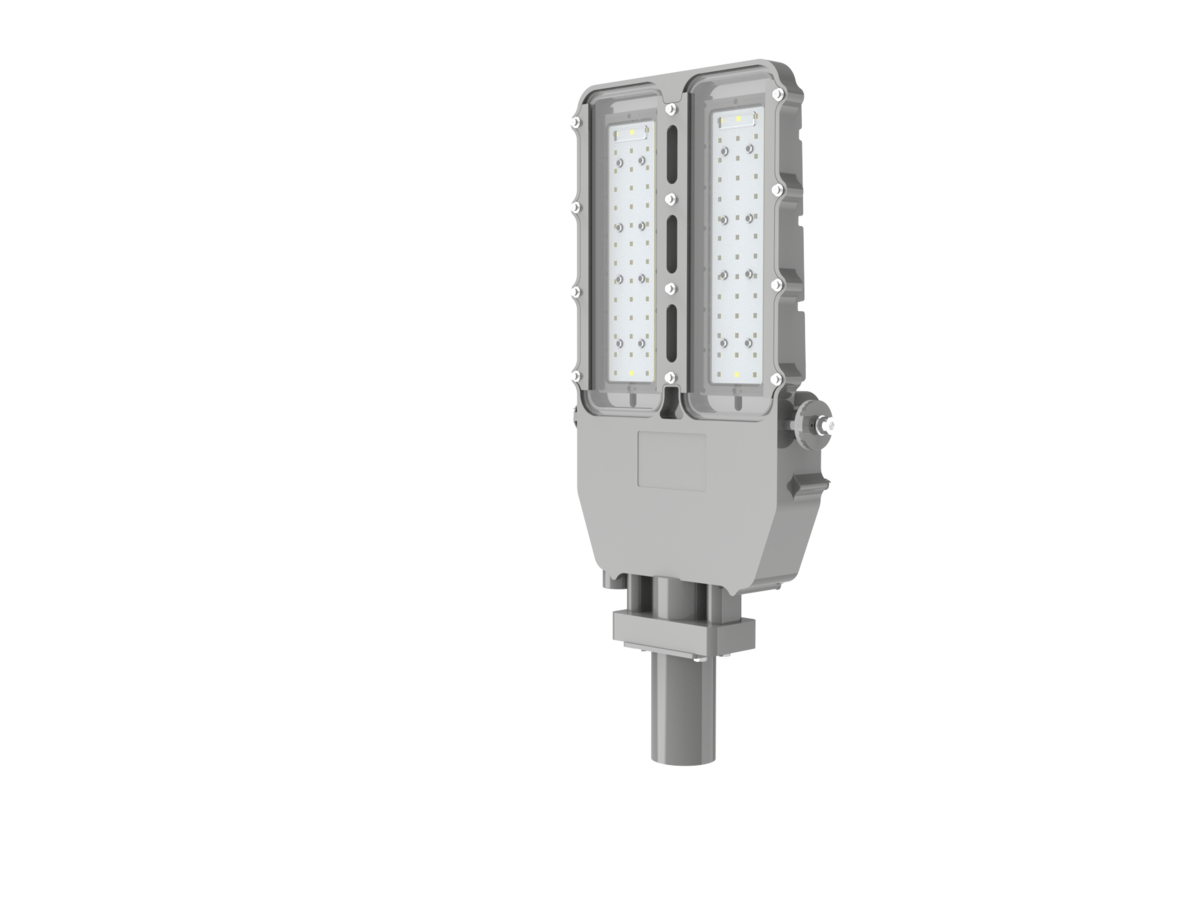

The STA1/STA2 Series are very easy to install through a variety of mounting options. The ATEX fixture can be equipped with seven different mounting brackets so we can provide a suitable solution for every situation. Installation methods: Pole Mounting, Trunnion Mounting, Arm Mounting, Slip Fitter Mounting, Bracket MountingApplications ATEX street lighting:

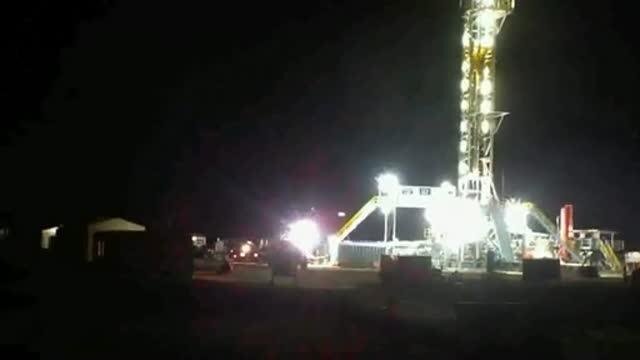

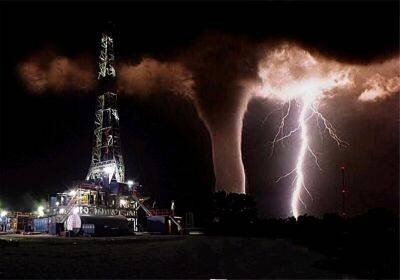

ATEX streetlight fixtures are suitable for various application areas and can be used as oil refinery lighting, gas refinery lighting, airport lighting, gas station lighting, mining lighting, drilling rig lighting, tunnel lighting, offshore lighting etc.
Specifications
Type of lighting
Explosion-proof streetlight
Brand
VOCARE-LEDLIGHT
Wattage
50W
Lumen output
7.000 Lumen
Lumen/Watt
140 Lm/W
Colour temperature
2700K/ 3000K/ 4000K/ 5000K/ 6000K
Input voltage
AC200-277V
Frequency
50-60Hz
Beam angle
40°/60°/90°/120°/T3/T5
Lifespan
>50.000h
IP rating
IP66
IK-rating
IK07
Power factor
>0.95
Housing
ADC12 aluminum

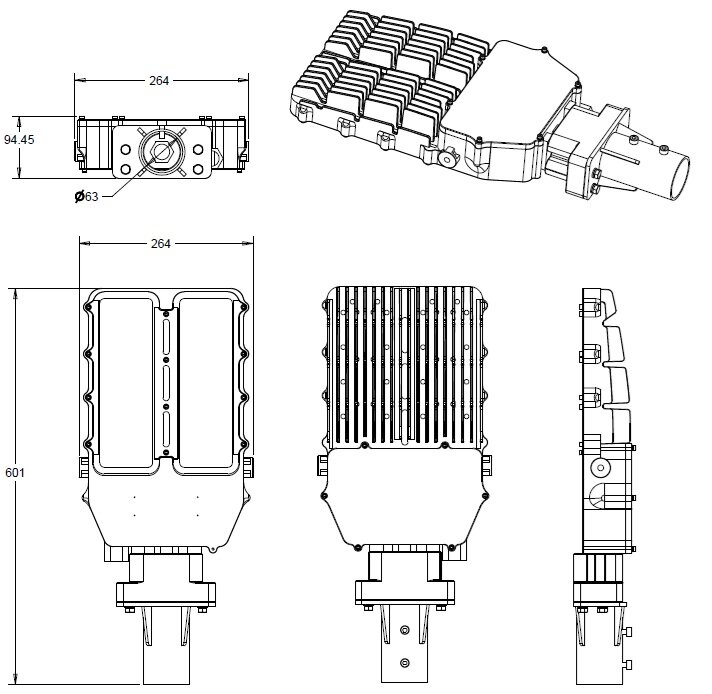

Measurements
415x264x75mm
Weight
6,5 KG
IECEx certification
Yes
ATEX Certification
Yes
