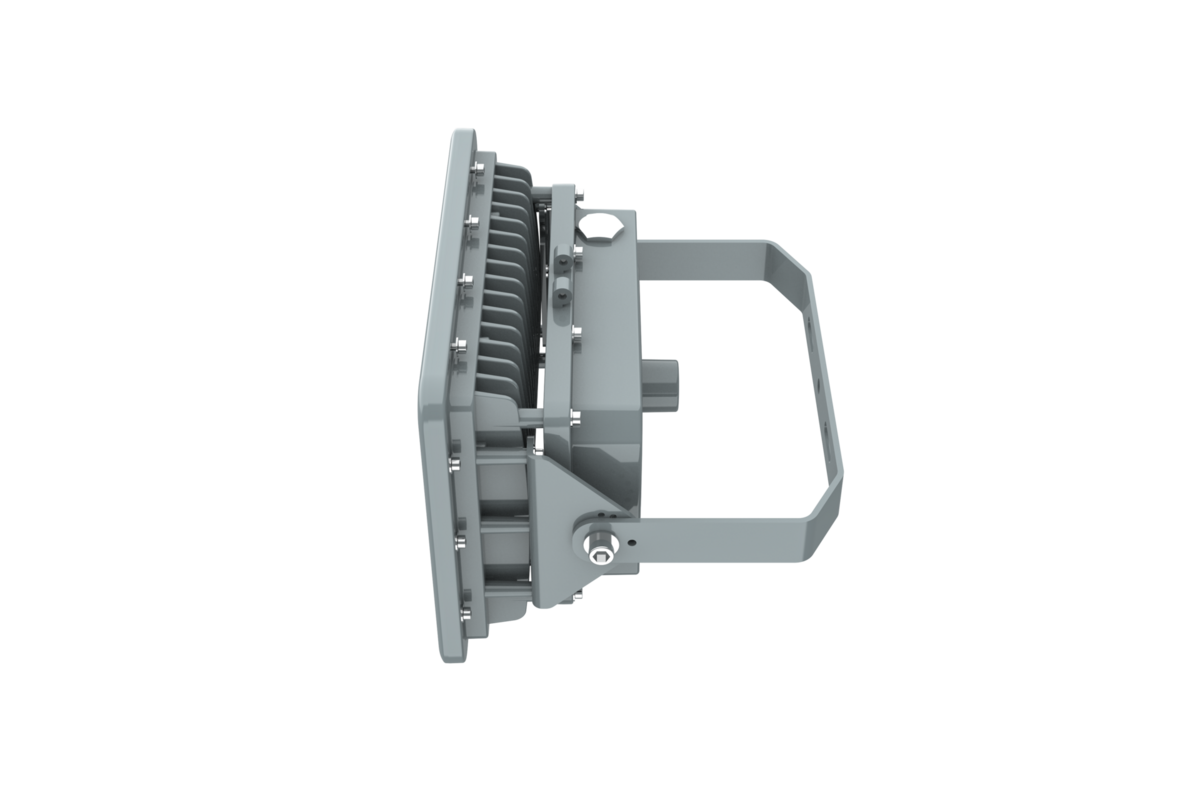

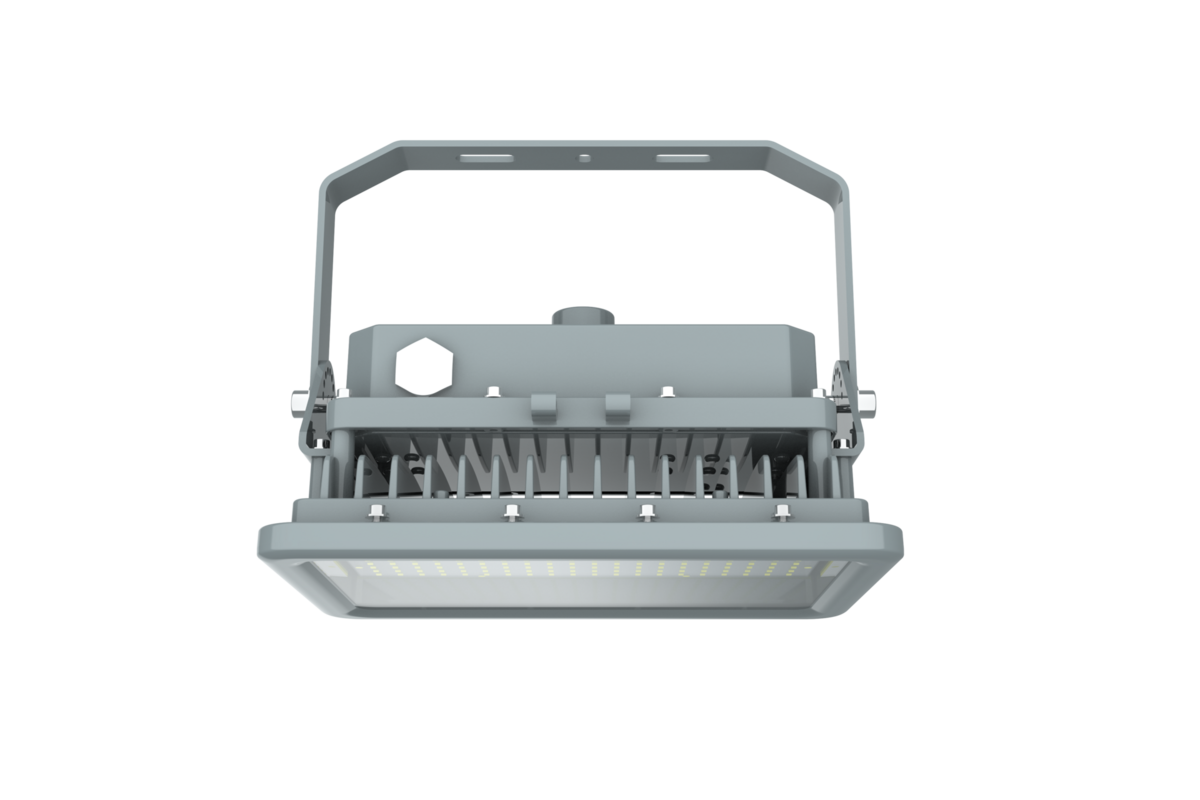

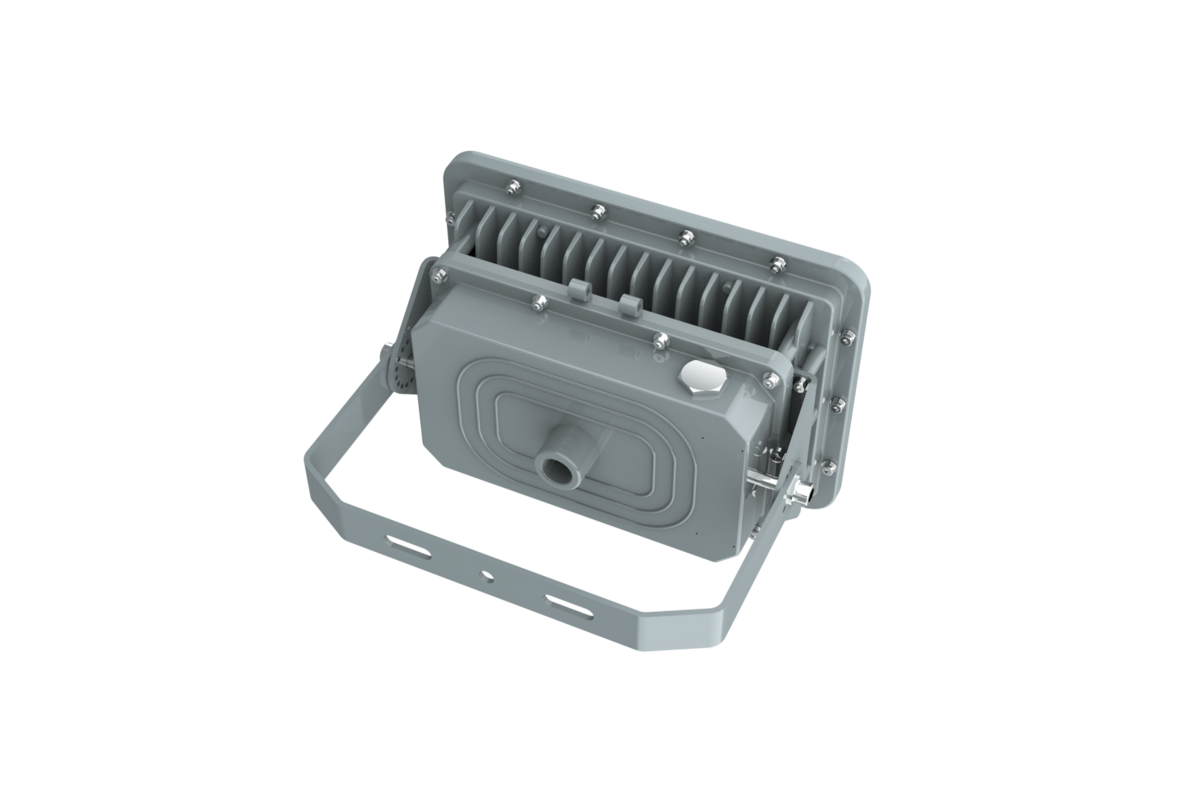

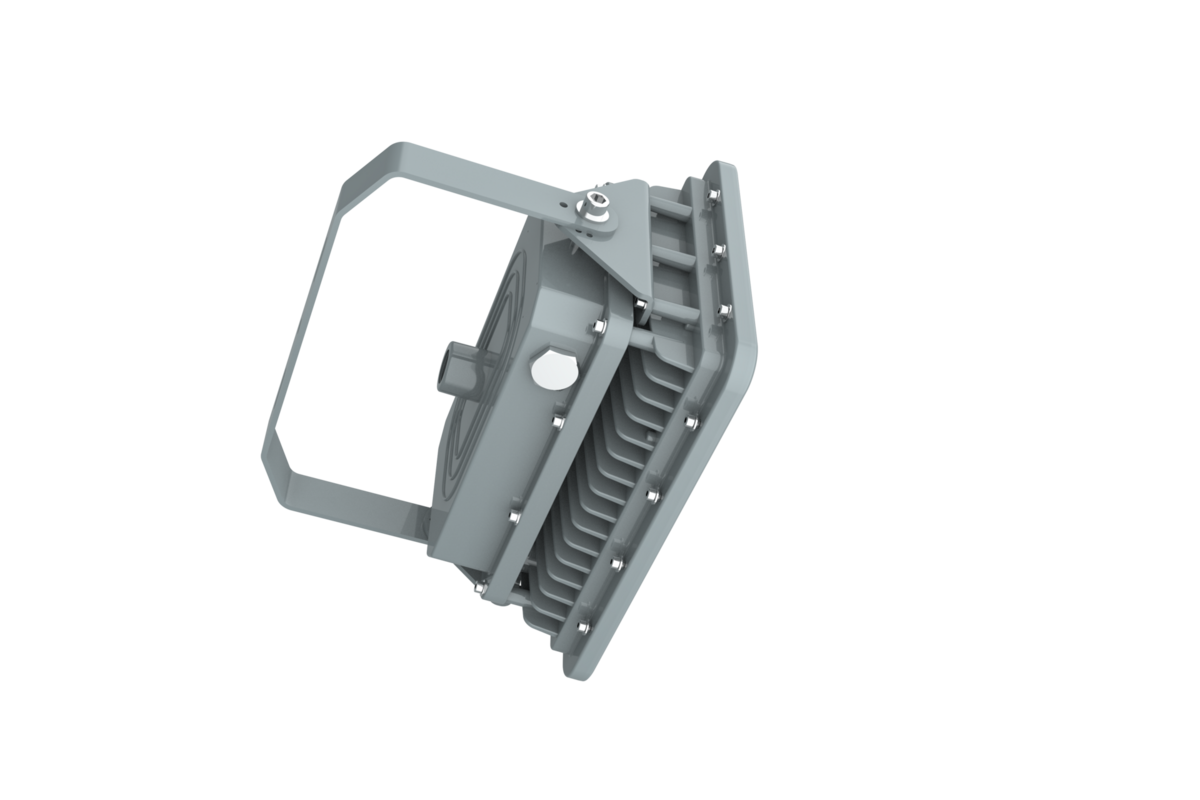

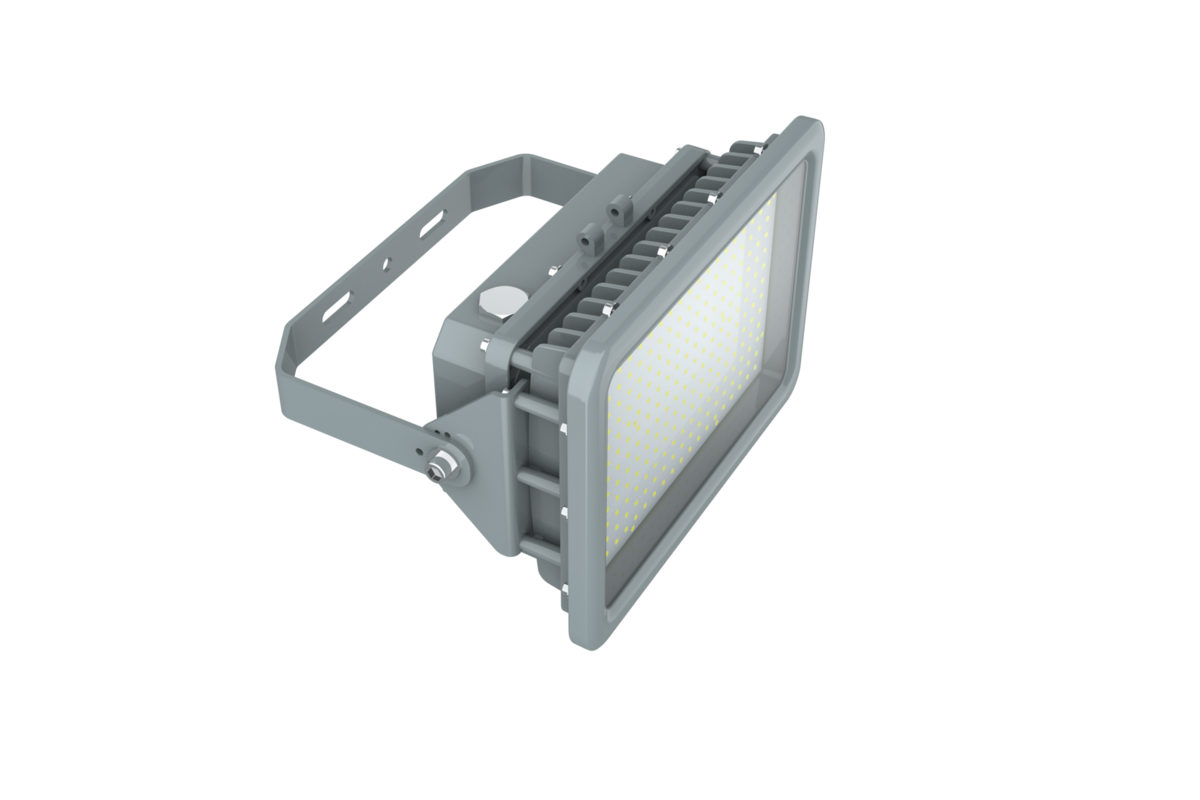

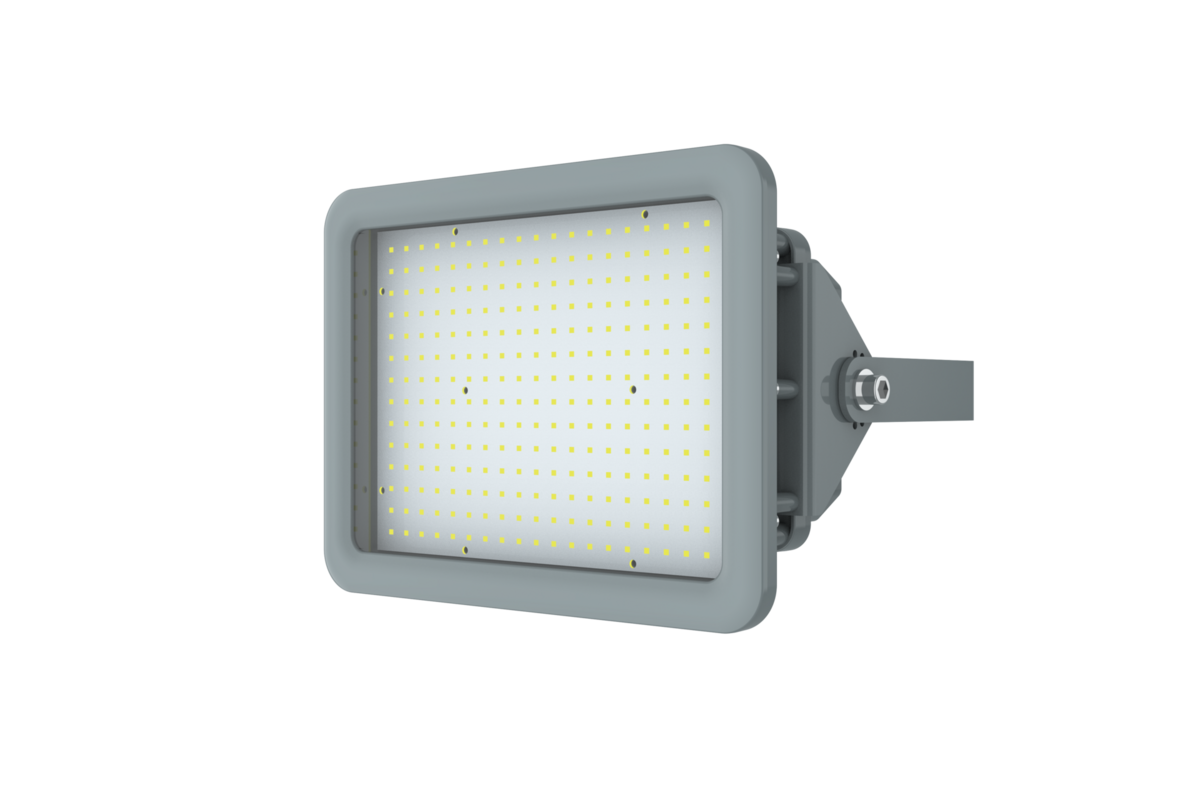

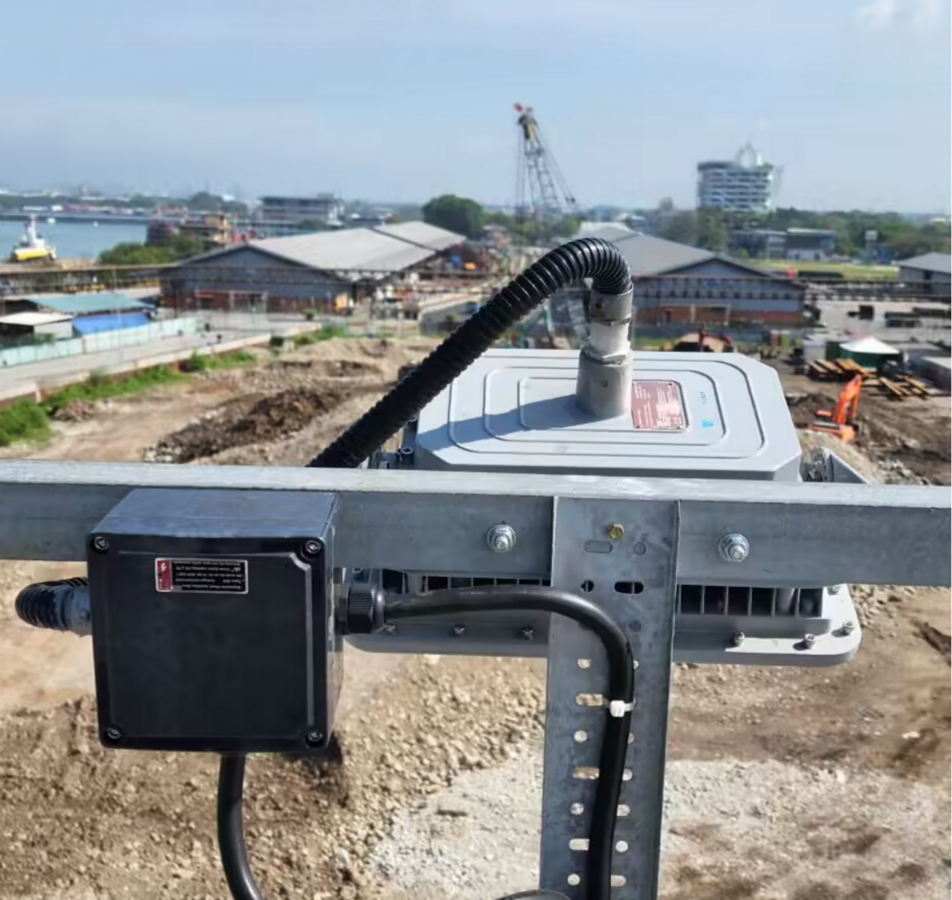

100W Explosion-proof floodlight for Hazardous Areas
This 100W ATEX floodlight is specially designed for hazardous environments and provides reliable lighting in Zone 1, 21, and Zone 2, 22. Certified to ATEX and IECEx standards, this floodlight is perfect for applications such as oil and gas refineries, petrochemical plants, tunnels and mines.ATEX Standard:
- II 2 G Ex eb mb IIC T6...T4 Gb
- II 2 D Ex tb IIIC T80°C...T100°C Db
IECEx Standard:
- Ex eb mb IIC T6...T4 Gb
- Ex tb IIIC T80°C...T100°C Db
Key Features - 100W Explosionproof LED Floodlight
- Suitable for zone 1,21 & 2,22
- Equipped with ATEX & IECEx certification
- IK08 Shockproof
- IP66 Water resistant
- Corrosion resistant
- Operating temperature -40°C to +45°C
- High light output
- Energy efficient
- Various mounting possibilities
Easy Installation:
The explosion-proof floodlight is very easy to install through various mounting options. The fixture comes standard with a mounting bracket but can also be equipped with a hook for ceiling mounting or special bracket for wall mounting. Read more about this in the product brochure.ATEX floodlight lighting applications:

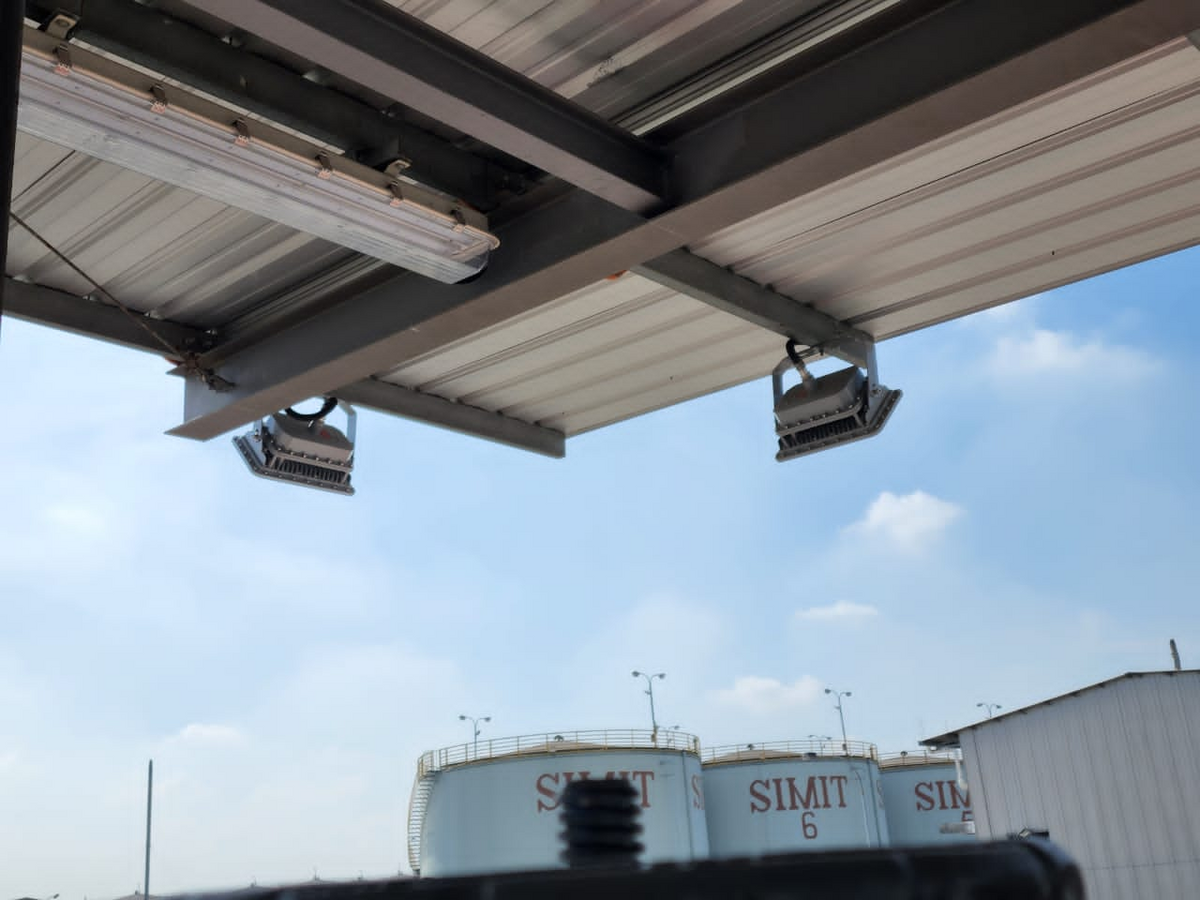

The ATEX LED floodlight is suitable for various application areas and can be used as oil refinery lighting, gas refinery lighting, airport lighting, storage lighting, industrial hall lighting, gas station lighting, mining lighting, drilling rig lighting, tunnel lighting, offshore lighting etc.Are you in need of advice?
Choosing the right ATEX lighting depends on your specific situation and requirements. Please contact our lighting advisors. They will gladly advise you and can answer all your questions.You can reach us in many ways:
Telephone +31 (0)85 – 0060455
Whatsapp +31 (0)85 – 0060455
E-mail sales@vocare-ledlight.com
Chatting via the chat function at the bottom of your screen.
Feel free to contact us and we will be happy to tell you more about the possibilities.
Specifications
- Type of lighting
- Explosion-proof floodlight
- Brand
- VOCARE-LEDLIGHT
- Wattage
- 100W
- Lumen output
- 14.000 Lumen
- Lumen/Watt
- 140 Lm/W
- Input voltage
- 200-250VAC
- Frequency
- 50-60Hz
- Beam angle
- 40°/60°/90°/120°
- Lifespan
- >50.000h
- IP rating
- IP66
- IK-rating
- IK08
- Power factor
- >0.95
- Housing
- ADC12 aluminum
- Ambient temperature
- -20°C - +50°C

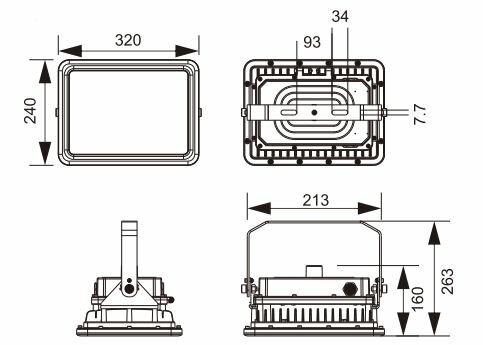

- Measurements
- 320x240x263mm
- Weight
- 7 KG
- ATEX Certification
- Yes
- IECEx certification
- Yes
