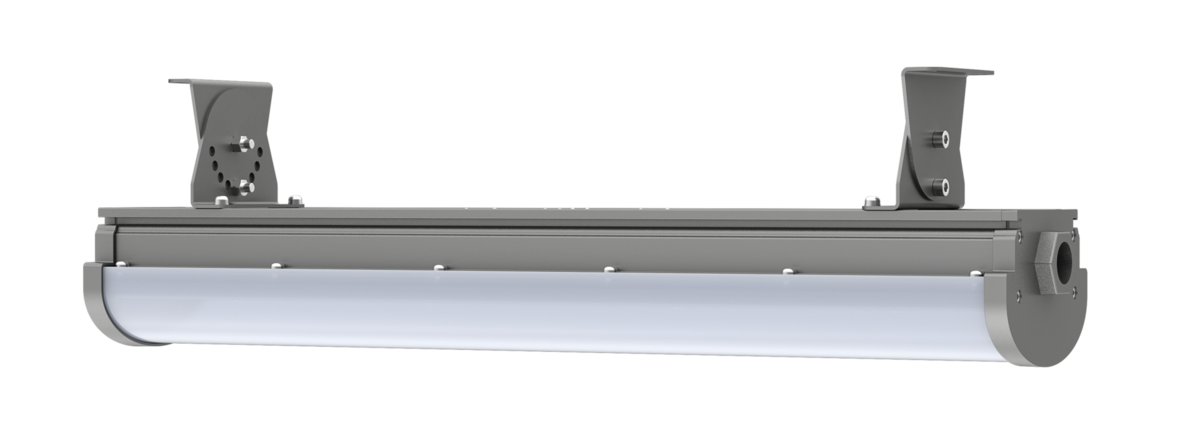

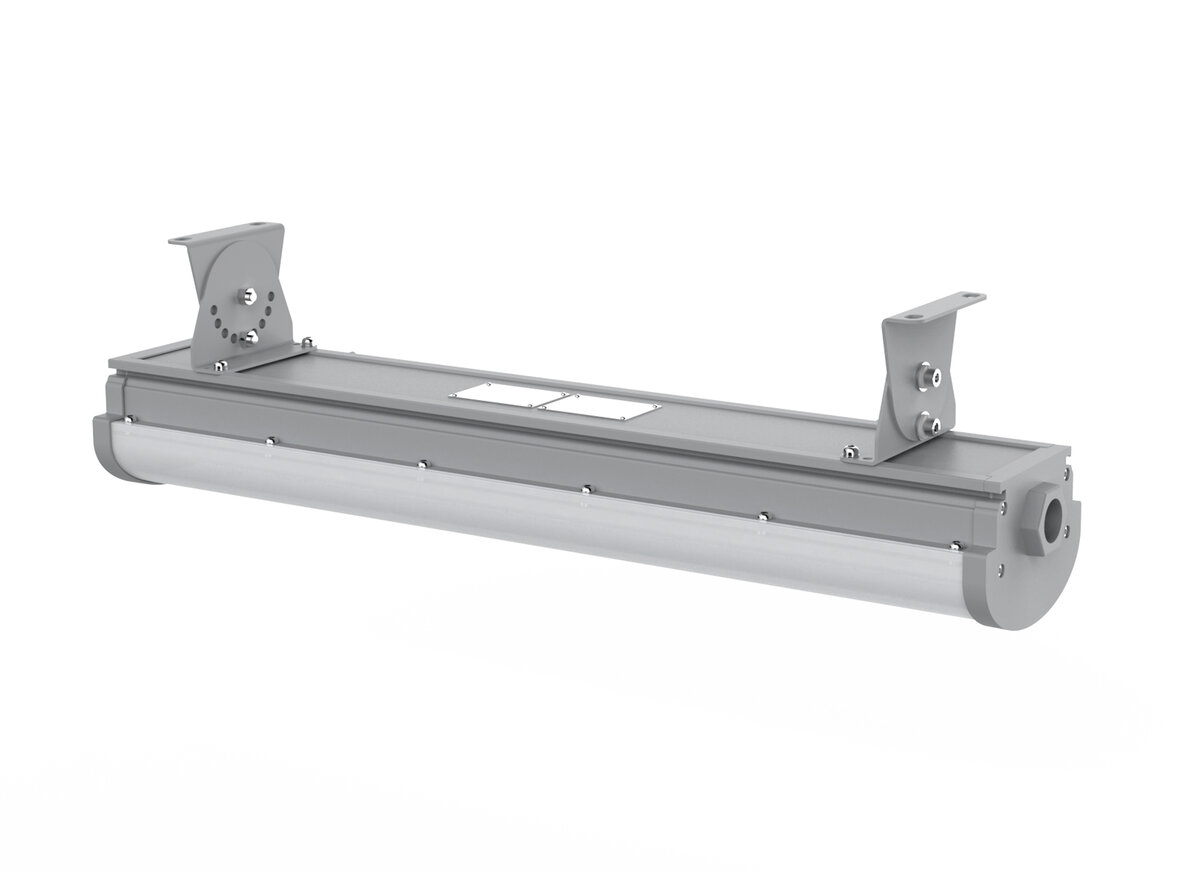

Explosion-proof Linear Light 20W T/M 50W - 60 CM
Vocare Ledlight
Do you have a question about this product?
Ask us your question
Do you have a question about this product?
Ask us your question
Information
ATEX Linear lighting suitable for Zone 1,21 and 2,22
The VOC-EX-LN P02 series is an explosion-proof LED bar suitable for ATEX zones 1/21/2/22 and the ideal replacement for traditional ATEX fluorescent lighting. Thanks to the wide choice of wattages, sizes and mounting options, this luminaire is suitable for a variety of applications. With uniform light distribution, high vibration and corrosion resistance, this linear explosion-proof light offers a durable and safe solution for extreme environments.ATEX Certification:
- II 2G Ex eb mb IIC T5 Gb;
- II 2D Ex tb IIIC T75°C Db;
IECEx Certification:
- Ex eb mb IIC T5 Gb;
- Ex tb IIIC T75°C Db;
Features ATEX Linear Light
- ATEX and IECEx Certified
- Suitable for zone 1, 21 and 2, 22
- IP66 Water resistant
- IK10 Shockproof
- Corrosion resistant
- Operating temperature -40°C to + 50°C
- High light output
- Long lifespan
- Available wattages: 20W/30W/40W/50W/60W/70W/80W/100W

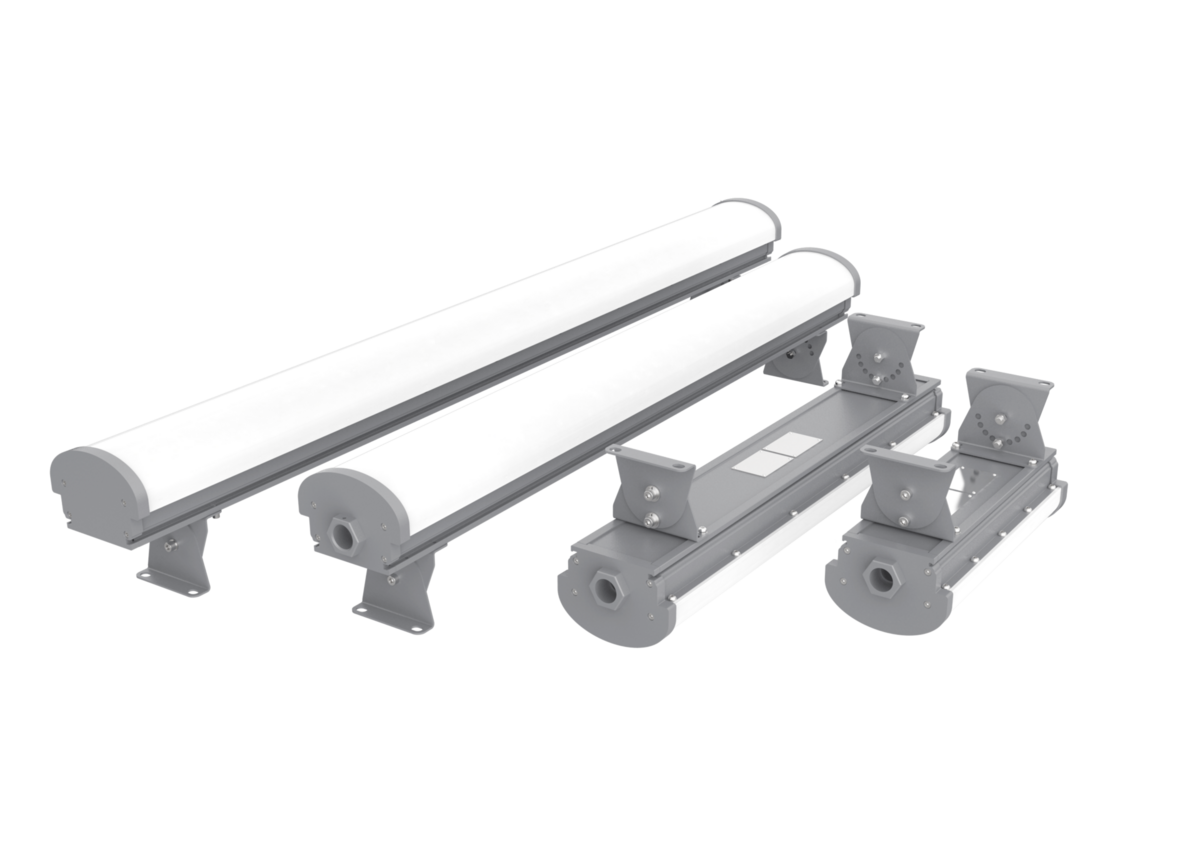

- Available lengths: 30CM/60CM/90CM/120CM

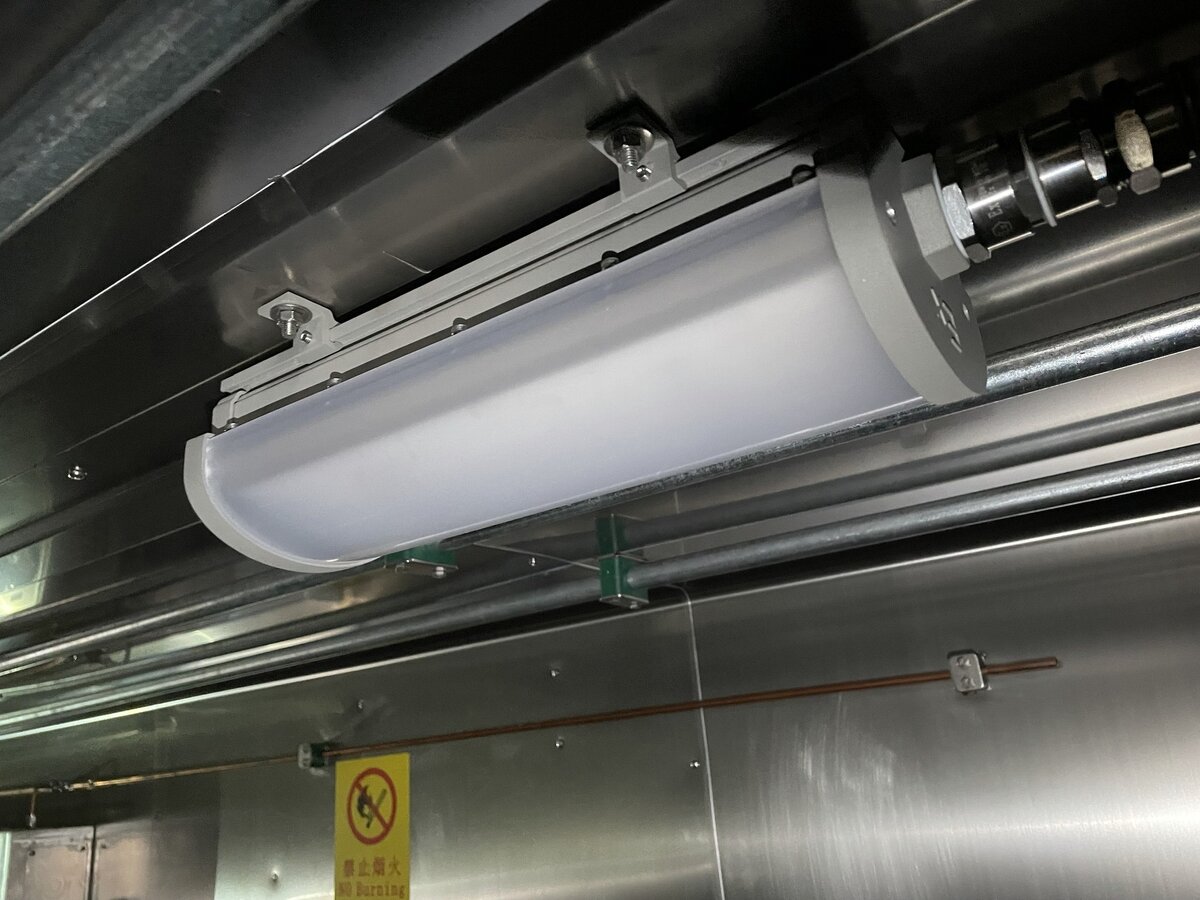

Installation methods linear ATEX lighting

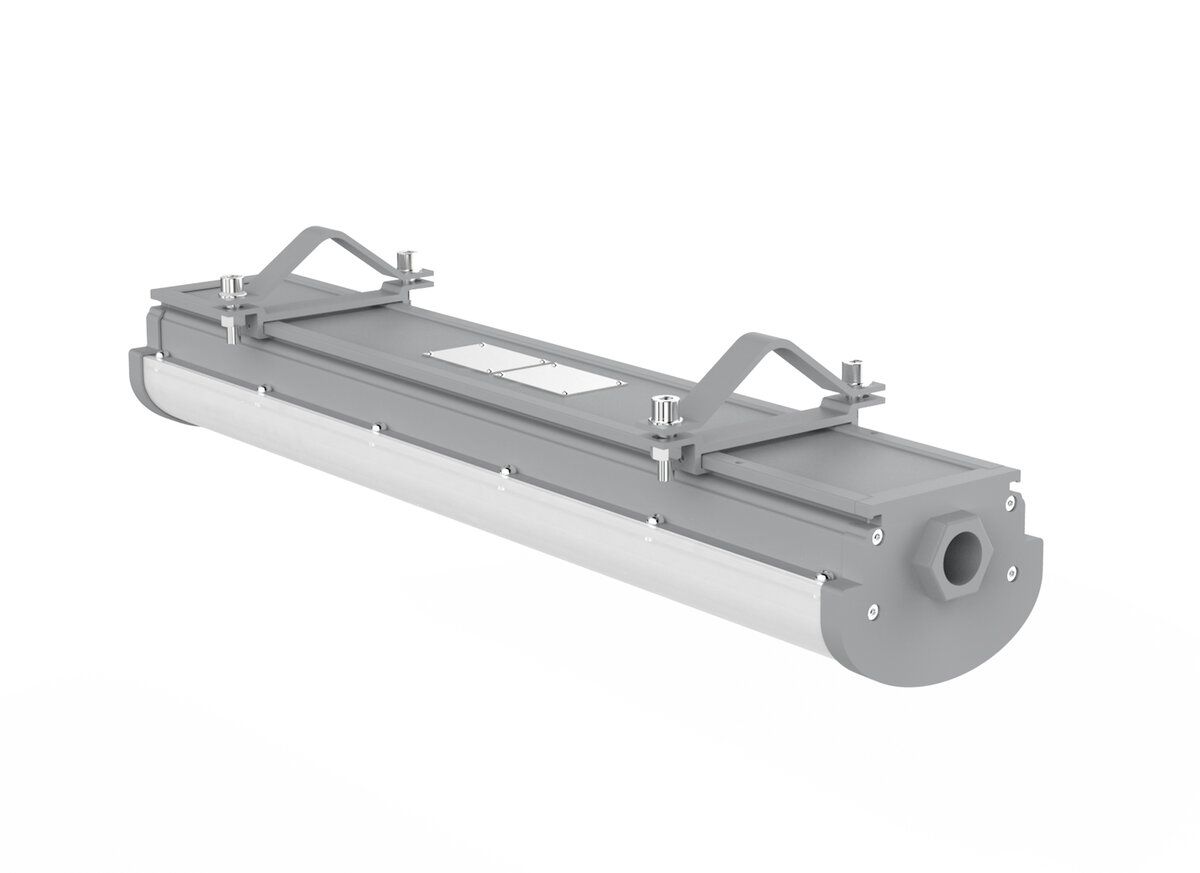

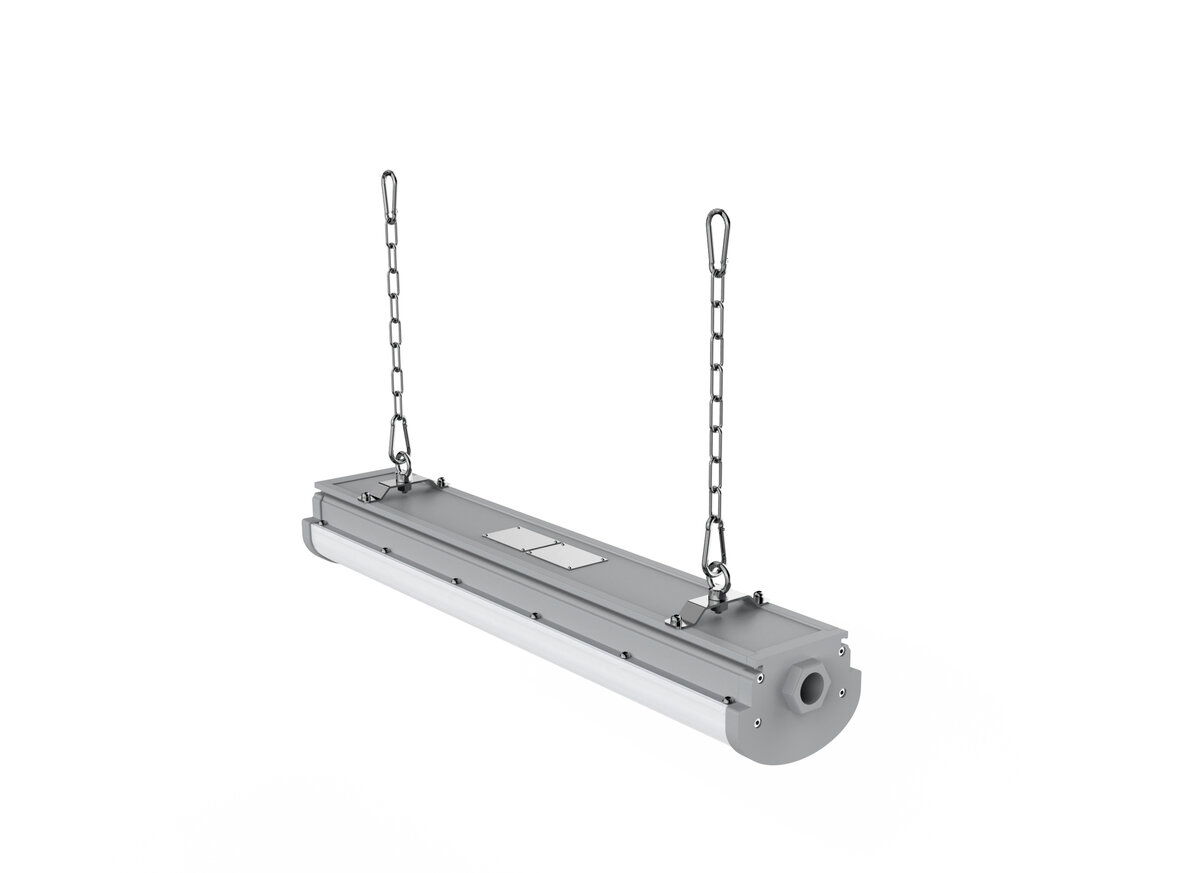

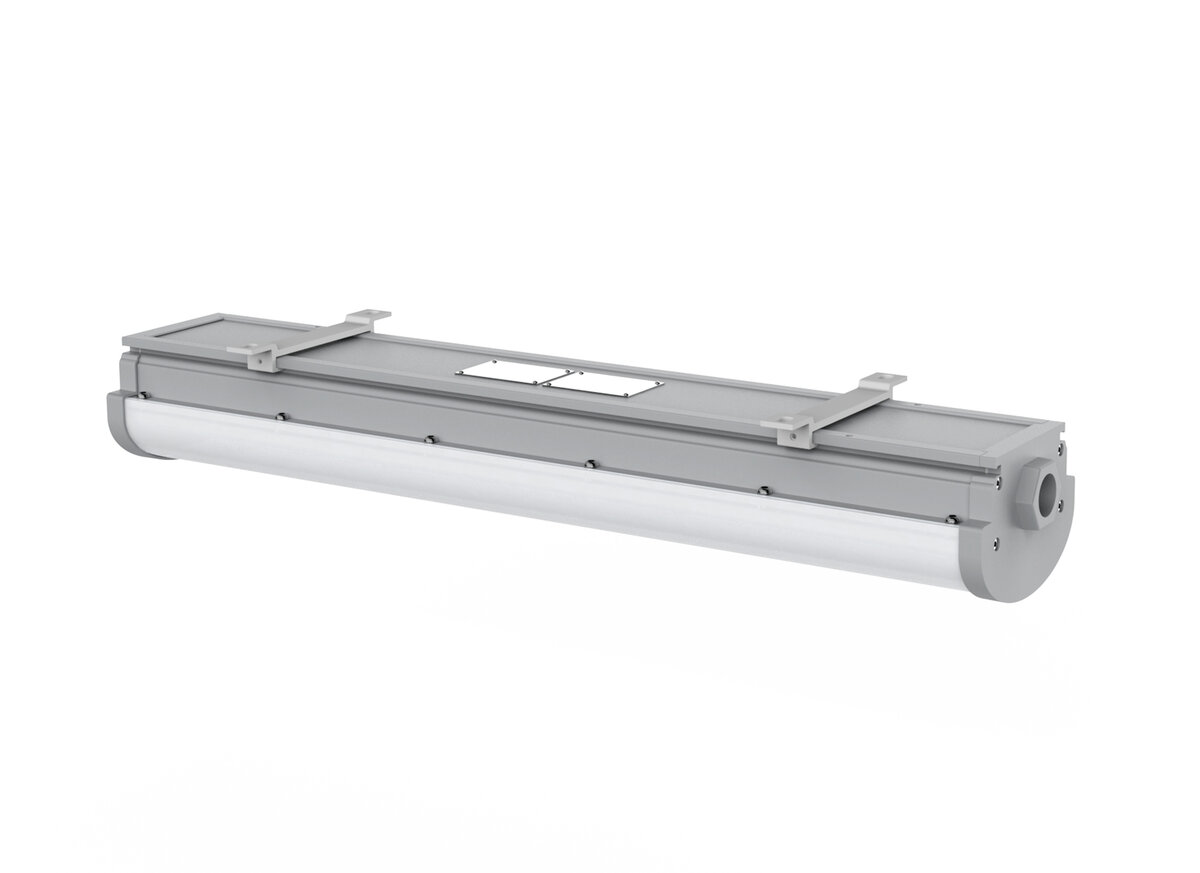

Ceiling mounting, Pendant mounting, Wall mounting, Pole mountingApplication areas

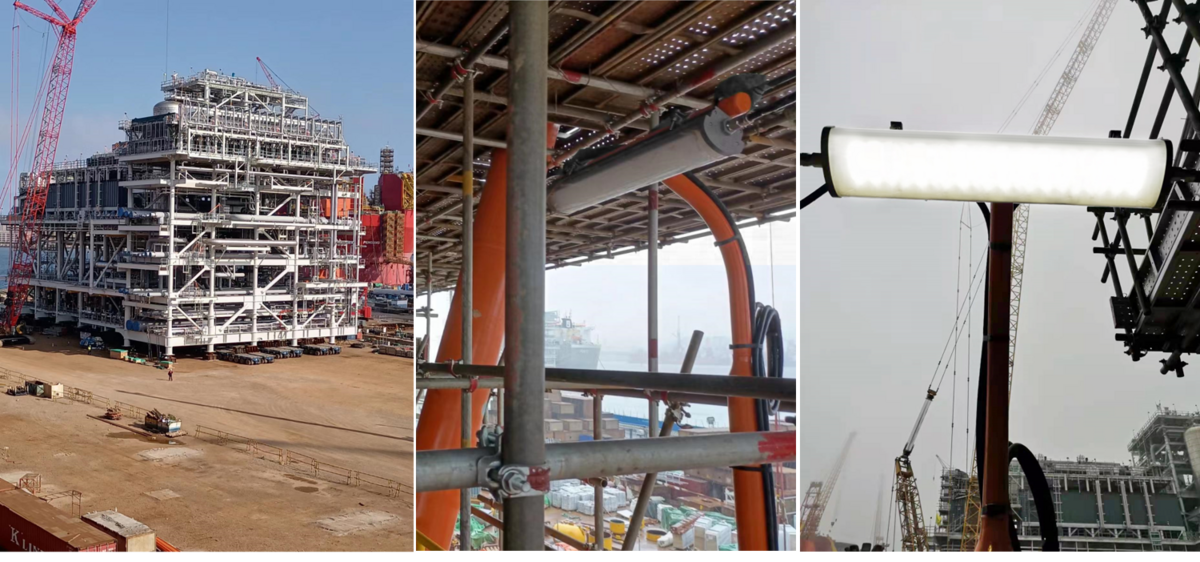

Oil and gas refineries, Gas stations, Wastewater treatment plants, Drilling rigs, Petrochemical facilities, Food and beverage facilities, Pharmaceutical industry, Automotive industry, Ports, Airports, Hangars, Shipping Etc.Are you in need of advice?
Choosing the right ATEX lighting depends on your specific situation and requirements. Please contact our lighting advisors. They will gladly advise you and can answer all your questions.You can reach us in many ways:
Telephone +31 (0)85 – 0060455
Whatsapp +31 (0)85 – 0060455
E-mail sales@vocare-ledlight.com
Chatting via the chat function at the bottom of your screen.
Feel free to contact us and we will be happy to tell you more about the possibilities.
Specifications
- Type of lighting
- Explosion-proof linear light
- Brand
- VOCARE-LEDLIGHT
- Wattage
- 20W/30W/40W/50W
- Lumen output
- 2800lm/4200lm/5600lm/7000lm
- Lumen/Watt
- 140 Lm/W
- Input voltage
- 100-277Vac
- Frequency
- 50-60Hz
- Lifespan
- >50.000h
- IP rating
- IP66
- IK-rating
- IK10
- Power factor
- >0.95
- Housing
- ADC12 aluminum
- Ambient temperature
- -40°C to +50°C

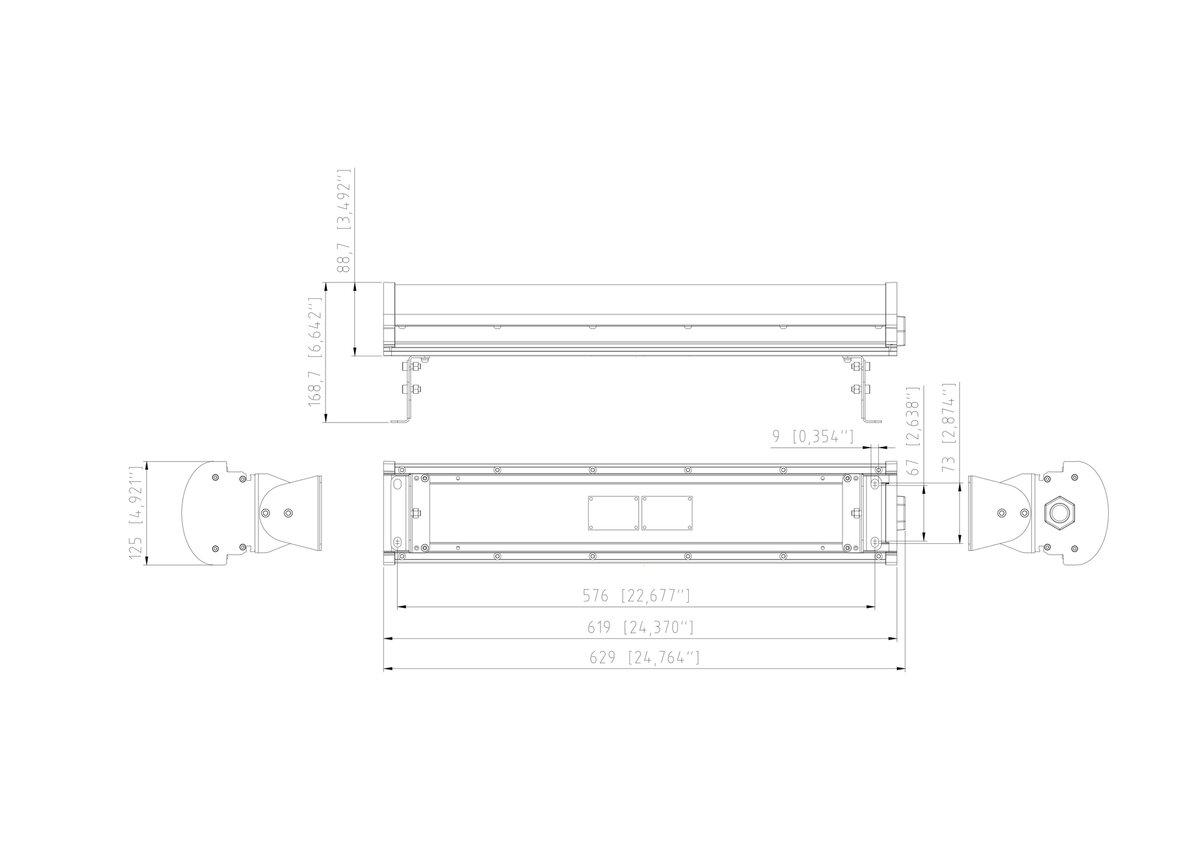

- Measurements
- 629x125x169mm
- Weight
- 4.6KG
- ATEX Certification
- Yes
- IECEx certification
- Yes
Reviews
5,0
on the basis of 1 Reviews
Het zijn prachtige lampen en voelen solide aan.
